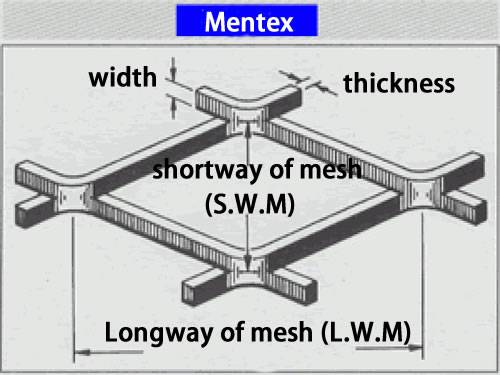

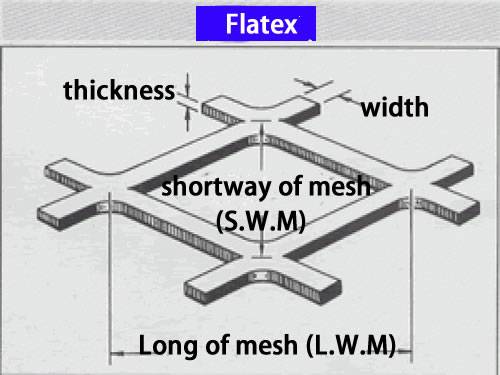

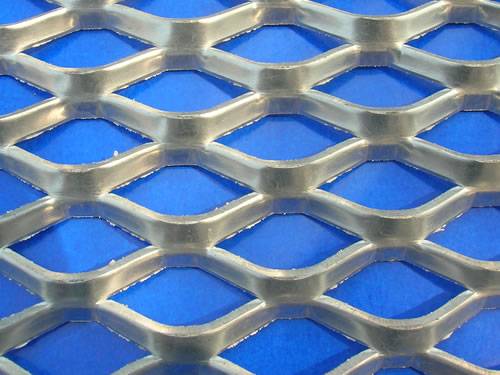

Mentex expanded metal also called regular expanded metal is manufactured by pressing, cutting and expanding, leaving sharply angled knuckles where the individual strands meet, which makes it have non-slip surface. Flatex expanded metal also called flattened expanded metal creates a smoother surface by an additional cold rolling process on the basis of mentex expanded metal, forming a finished product that is about 5% lighter than regular expanded metal. No matter mentex expanded metal or flatex expanded metal is formed from a piece of metal. So, there is no waste in the process of production, which makes them be the most environmentally friendly in all type metal.
Specification of mentex and flatex expanded metal:
Sheet Sizes | |
---|---|
SWM: +/- 1 SWM or +/- 25 mm whichever is greater | |
LWM: +/- 1% of sheet width | |
Strand Width & Thickness | Mentex +/- 10% |
Flatex +/- 20% | |
Out of Square of Sheet: 2% of length | |
Mass: +/- 20% |
Type | SWM (mm) | LWM (mm) | Strand Width (mm) | Strand Thickness (mm) | Mass Per Sheet (%) |
---|---|---|---|---|---|
Mentex38/VEM484 | 40 | 140 | 6 | 4.5 | 29.00 |
Mentex43/VEM305B | 40 | 115 | 6 | 4.5 | 23.29 |
Mentex43A/VEM305A | 40 | 115 | 4.5 | 4.5 | 17.68 |
Mentex63/VEM355G | 30 | 80 | 3 | 3.0 | 11.29 |
Mentex70/VEM325A | 20 | 60 | 6 | 4.5 | 39.95 |
Mentex72/VEM325G | 20 | 60 | 3 | 3.0 | 14.11 |
Mentex80A/VEM318H | 15 | 40 | 3 | 2.5 | 17.60 |
Mentex82/VEM318F | 15 | 40 | 2.5 | 1.6 | 9.62 |
Mentex118/VEM315F | 16 | 30 | 2.5 | 1.6 | 11.55 |
Mentex130/VEM280D | 8 | 20 | 2 | 1.0 | 9.42 |
Mentex300/VEM311E | 45 | 80 | 3 | 3.0 | 7.92 |
Mentex304/VEM320G | 25 | 50 | 3 | 3.0 | 14.11 |
Type | SWM (mm) | LWM (mm) | Strand Width (mm) | Strand Thickness (mm) | Mass Per Sheet (%) |
---|---|---|---|---|---|
Flatex 338/VEM 6311F | 50 | 80 | 4.5 | 2.5 | 8.73 |
Flatex 344/VEM 6320C | 25 | 50 | 3 | 1.6 | 6.74 |
Flatex 346/VEM 6320H | 25 | 50 | 4.5 | 3.0 | 18.49 |
Flatex 348/VEM 6320E | 25 | 50 | 4.5 | 2.5 | 14.86 |
Flatex 349/VEM 6320D | 25 | 50 | 3 | 2.0 | 8.41 |
Flatex 352/VEM 6318F | 15 | 40 | 3 | 1.6 | 10.02 |
Flatex 358/VEM 6315F | 16 | 30 | 3 | 1.6 | 11.29 |
Flatex 362/VEM 6280E | 8 | 20 | 2 | 1.0 | 9.01 |
Features of mentex and flatex expanded metal:

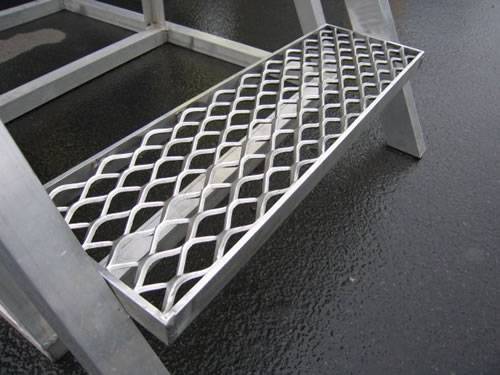

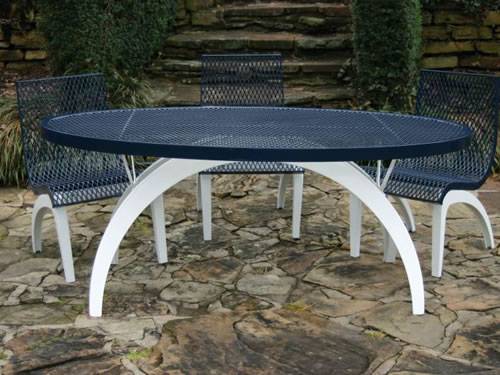

Application:
