Expanded Security Fence Specification — Width, Height, Weight, Open Area

Expanded metal security fence systems made of standard surface metal or flattened surface metal mainly has six types:

  • New fence construction — It consists of expanded metal fence merely.
  • Retrofit chain link fence — It is made of expanded metal fence and chain link fence. Besides, expanded metal fence with smaller holes is placed on the bottom to prevent small objects going through.
  • Retrofit ornamental picket fence — It consists of expanded metal fence and ornamental pickets, which play a role in increasing strength.
  • Anti-Climb panel — It is made of expanded metal fence with bending top to improve its anti-climbing ability.
  • Below-Grade tunneling panel — It consists of expanded metal fence, which is used for tunneling.
  • Retrofit expanded metal fence — It consists of reversed diamond orientation expanded metal fence with larger holes and standard diamond orientation expanded fence with smaller holes, which is placed on the bottom to prevent small objects going through.

No matter what type of fence you want and wherever you want to apply, and we can meet your requirements

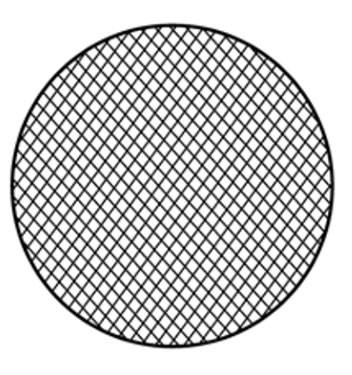

The picture shows new fence construction consisting of expanded metal fence merely.
SEMSF-01: New fence construction.
New fence construction consists of chain link fence and expanded metal fence, which is placed on the bottom.
SEMSF-02: Retrofit chain link fence.
Retrofit ornamental picket fence is made of expanded metal fence and ornamental pickets.
SEMSF-03: Retrofit ornamental picket fence.

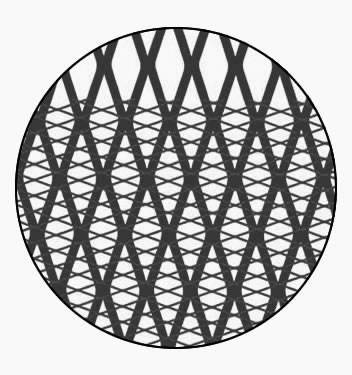

Retrofit expanded metal fence consists of reversed diamond orientation and standard diamond orientation which is placed on the bottom.
SEMSF-04: Retrofit expanded metal fence

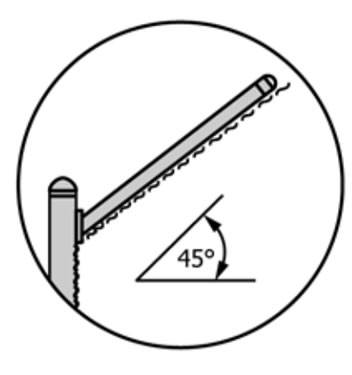

Anti-climb panel is made of expanded metal fence with bending top.
SEMSF-05: Anti-climb panel.

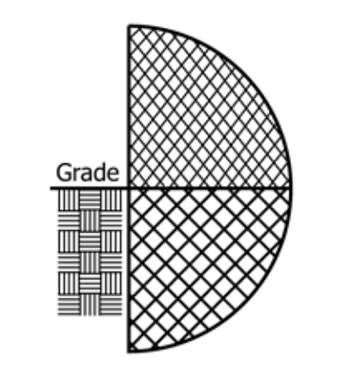

Below-grade tunneling panel consists of expanded metal fence.
SEMSF-06: Below-grade tunneling panel.

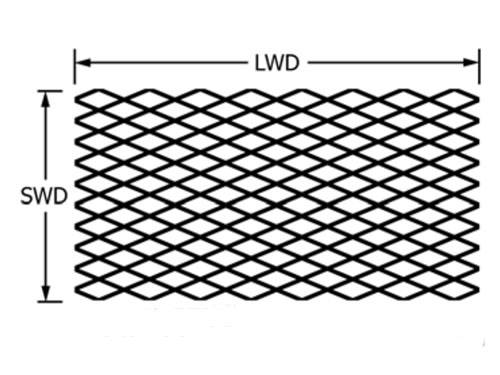

The picture shows standard diamond orientation expanded metal dimensions.
SEMSF-07: Standard diamond orientation.

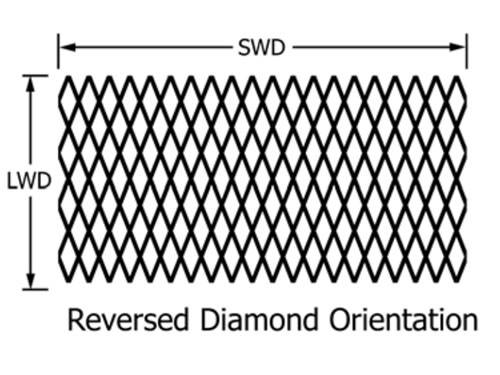

The picture shows reversed diamond orientation expanded metal dimensions.
SEMSF-08: Reversed diamond orientation
  • Type
    • Type 1—Expanded
    • Type 2—Expanded and flattened
  • Class
    • Class 1—Uncoated
    • Class 2—Hot-dip zinc coated (galvanized)
    • Class 3—Corrosion-resisting steel

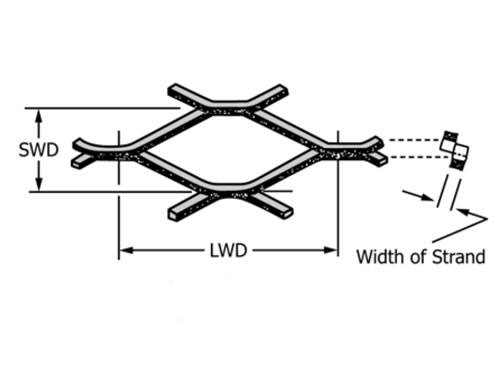

The picture shows expanded metal dimensions including SWD, LWD and width of strand.
SEMSF-09: Type 1, Expanded.

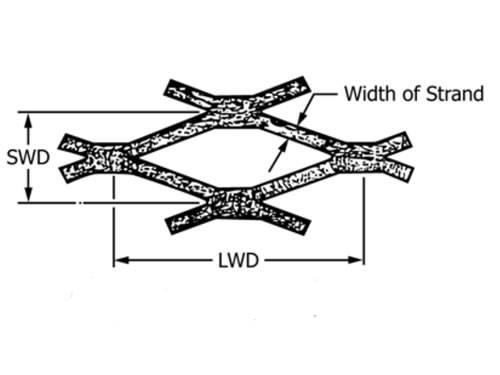

The picture shows expanded and flattened metal dimensions including SWD, LWD and width of strand.
SEMSF-10: Type 2, Expanded and flattened.
TABLE 1: Expanded Metal Panel Description
Description Expanded Metal Panels Used in Security Fence Applications
1⁄2 in.–13R 1⁄2 in.–13R (.188) 3⁄4 in.–9R 3⁄4 in.–9F 1 in.–7R (.240) 1-1⁄2 in.— 6R
Width of Panel (ft.) 3 − 6 3 − 6 3 − 6 3 − 6 3 − 5 3 − 5
Height of Panel (ft.) 6 − 12 6 − 12 6 − 12 6 − 12 6 − 12 6 − 12
Diamond Dimensions (in.) SWD by LWD 0.500 by 1.20 0.500 by 1.20 0.923 by 2.00 0.923 by 2.10 1.00 by 2.40 1.330 by 3.00
Percent Open Area 57% 25% 68% 63% 52% 63%
Strand Thickness (in.) 0.092 0.09 0.134 0.120 0.170 0.198
Strand Width (in.) 0.096 0.188 0.150 0.164 0.240 0.203
Weight per ft2 1.47 2.82 1.80 1.71 3.50 2.50
Weight Galvanized per ft2 1.73 3.1 1.95 1.86 3.70 2.73
